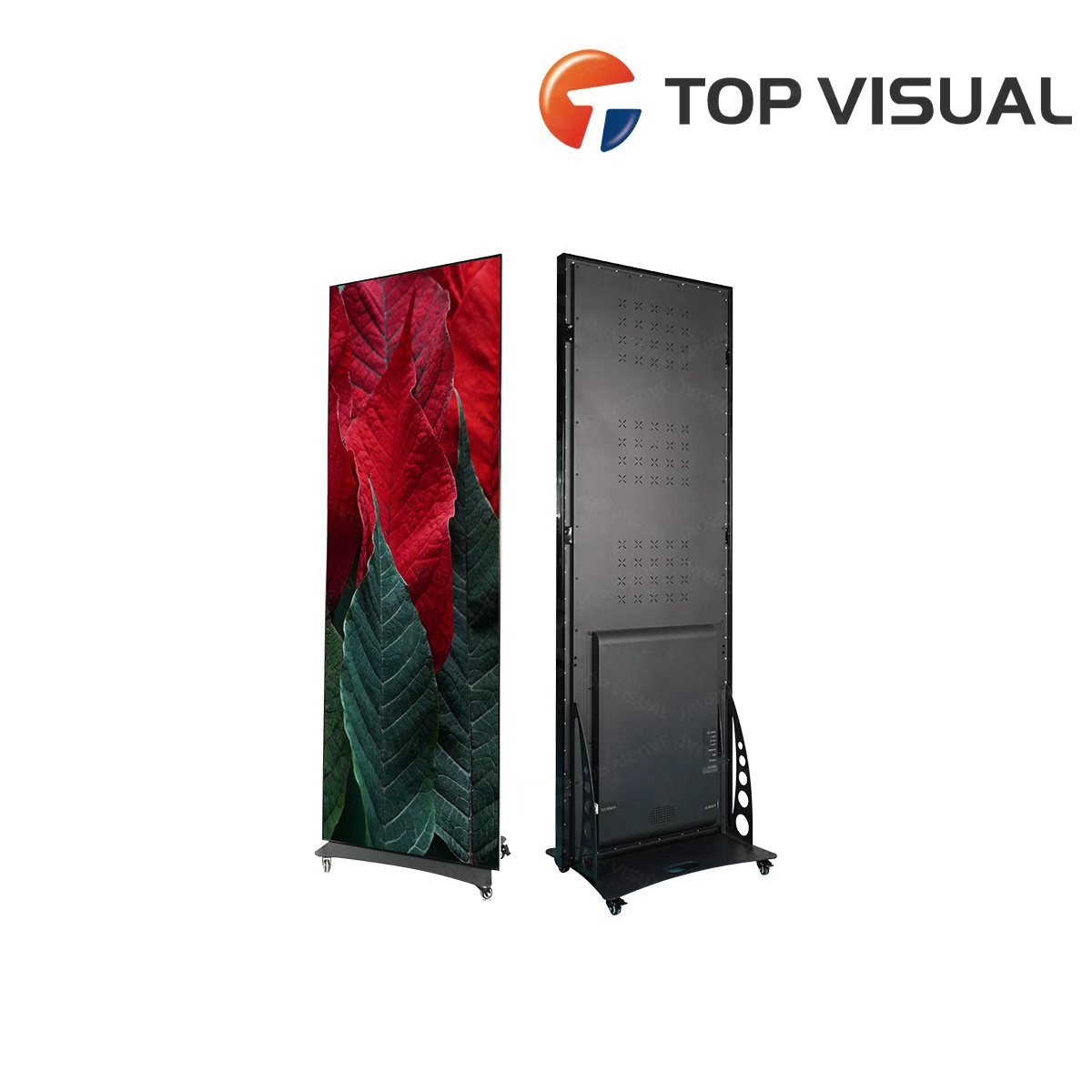

LED Standard Poster 1920x640mm
The LED Poster 1920×640mm is a slim, high-brightness digital signage solution designed for retail stores, exhibitions, hotels, events, and brand promotions. With its ultra-tall aspect ratio and plug-and-play design, it delivers vibrant visuals that instantly capture customer attention.
Description
Key Features
Ultra-Slim 1920×640 Format — Ideal for vertical advertising, product showcases, and reception areas.
High Brightness & Wide Viewing Angle — Clear visibility in all lighting environments, perfect for indoor public spaces.
All-in-One Integrated System — Built-in media player, power supply, and WiFi for seamless content control.
Flexible Installation — Supports floor-stand, wall-mount, hanging, or multi-screen splicing.
Lightweight & Portable — Easy to move and deploy for events, pop-up stores, or rental applications.
| Model | Poster-1.2 | Poster-1.5 | Poster-1.8 | Poster-2.5 |
|---|---|---|---|---|
| Physical Pitch | 1.25mm/0.06“ | 1.53mm/0.07“ | 1.86mm/0.1” | 2.5mm/0.12“ |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD2121 |
| Pixel Density | 640000px/m2 | 422753px/m2 | 289050px/m2 | 160000px/m2 |
| Module Dimension (WxH) |
320x160mm/ 9.84″x9.84″ | 320x160mm/ 9.84″x9.84″ | 320x160mm/ 9.84″x9.84″ | 320x160mm/ 9.84″x9.84″ |
| Panel Dimension (WxHxD) |
640x1920x35mm(19.68″x39.37″x3.14″) | 640x1920x35mm(19.68″x39.37″x3.14″) | 640x1920x35mm(19.68″x39.37″x3.14″) | 500x500x80mm (19.68″x19.68″x3.14″) |
| No. of Module/panel (WxH) |
2×12 | 2×12 | 2×12 | 2×12 |
| Module Resolution | 256x128px | 208x104px | 172x86px | 128x64px |
| Panel Resolution | 512x1536px | 416x1248px | 344x1032px | 256x768px |
| Panel Material | Cold steel + Aluminum frame | Cold steel + Aluminum frame | Cold steel + Aluminum frame | Cold steel + Aluminum frame |
| Panel Weight | 48kg(105.82Ibs) | 48kg(105.82Ibs) | 48kg(105.82Ibs) | 48kg(105.82Ibs) |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Avg. Power Consumption |
200w/panel | 200w/panel | 200w/panel | 200w/panel |
| Max. Power Consumption |
600w/panel | 600w/panel | 600w/panel | 600w/panel |
| Operating Temp/Humidity |
-10°C – 60°C / 10% – 60% | -10°C – 60°C / 10% – 60% | -10°C – 60°C / 10% – 60% | -10°C – 60°C / 10% – 60% |
| Storage Temp/Humidity |
-30°C – 60°C / 10% – 60% | -30°C – 60°C / 10% – 60% | -30°C – 60°C / 10% – 60% | -30°C – 60°C / 10% – 60% |
| Refresh Rate | 3840hz | 3840hz | 7680hz | 7680hz |
| Brightness | ≥600nits | ≥600nits | ≥600nits | ≥600nits |
| Viewing Angle (H/V) |
160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Service | Rear | Rear | Rear | Rear |
| Expected Lifetime | 100,000hrs | 100,000hrs | 100,000hrs | 100,000hrs |
| IP Rating (Front/Rear) |
IP40/IP21 | IP40/IP21 | IP40/IP21 | IP40/IP21 |
| Certification | CCC,CE,ETL,RoHS | CCC,CE,ETL,RoHS | CCC,CE,ETL,RoHS | CCC,CE,ETL,RoHS |
